Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle

Name: Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle
Brand: Labelong
Price: 5000 USD

Quality Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle wholesale

Brand Name : Labelong

Model Number : L-12H

Certification : CE

Place of Origin : China

MOQ : One set

Price : USD5000-20000/SET

Payment Terms : T/T OR L/C

Supply Ability : 50-100SET/YEAR

Delivery Time : 20-40 days

Packaging Details : Wooden case

Product Name : Linear Bottle Filling Machine

Filling liquid : sauce

Capacity : 2000-3000BPH

Material : 304 stainless steel

Brand : Labelong

Control : PLC

Bottle type : pet/glass bottle

Function : Filling Capping

Automatic grade : Automatic

Driven type : Electric

Condition : New

Voltage : 380V/220V

Packaging type : Bottles

Application : Beverage,Food,Chemical,Medical,Commodity

Power : 2KW

Warranty : one Year

Contact Now

Automatic piston type plastic glass bottle fruit Jam chocolate sauce filling capping labeling machine

Equipment Brief Introduction:
 This Production Line Includes A Filling Machine, A Capping Machine, And An Aluminum Foil Sealing Machine;
 The Machine Type, Number Of Machines, Speed, Capacity, Size, Etc. Of The Production Line Can Be Customized According To The
 Customer'S Production Needs; We Can Develop A Professional Integrated Filling And Packaging Production Line Plan For The Customer.

 This Automatic Filling Line can be customized to fill various products,such as Honey, Soy Sauce, Peanut Oil, Blended Oil, Chili Sauce, Ketchup, Vinegar, Cooking Wine And So On.

Application: detergent, oil, toilet cleaner, soap water, sauce, jam, honey

Capacity: 500-3000 bottles / hour (500ML)

Containers applied for: PET /glass bottle of all volumes and shapes

Filling system: piston filling.

Major Characteristics:
(1). Linear piston filling, 8 filling heads high efficiency with high production capacity .
(2). PLC controlled. Easily connected with capping machine and labeling machine and implementing Bus Communication.
(3). Two channel standard safety electric circuit to make sure equipments running safely.
(4). With AUTO-ID system. No bottle no filling.
(5). Servo drive piston, high-precision filling
(6). Adopting diving filling to avoid foamy and explosion.
(7). Eternal wear free measuring cylinder, long working life Pan plug seal with the function of self-compaction, maintenance free.

Technical Parameters:

Machine dimension	2000mm(L)* 1200mm(W)*2500mm(H)
Filling heads	Accorting to production capacity
Filling range	Customized
Production capacity:	1000-3000b/h(take 500ml foamy product as test)
Filling Tolerance	Filling machine for volume ≤500ml----±1g Filling machine for volume ≥500ml----±2g
Power supply	AC380V,50Hz; AC220V,50Hz (customized)
Air consumption	0.55-0.65 Mpa clean and stable compressed air
Diameter of bottle mouth	Customized

Piston Type Filling Capping Labeling Machine Automatic for Plastic Glass Bottle

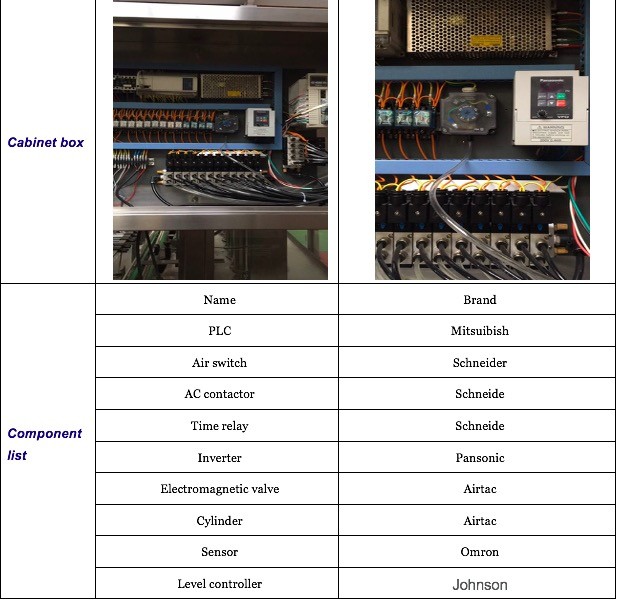

Configuration List:
